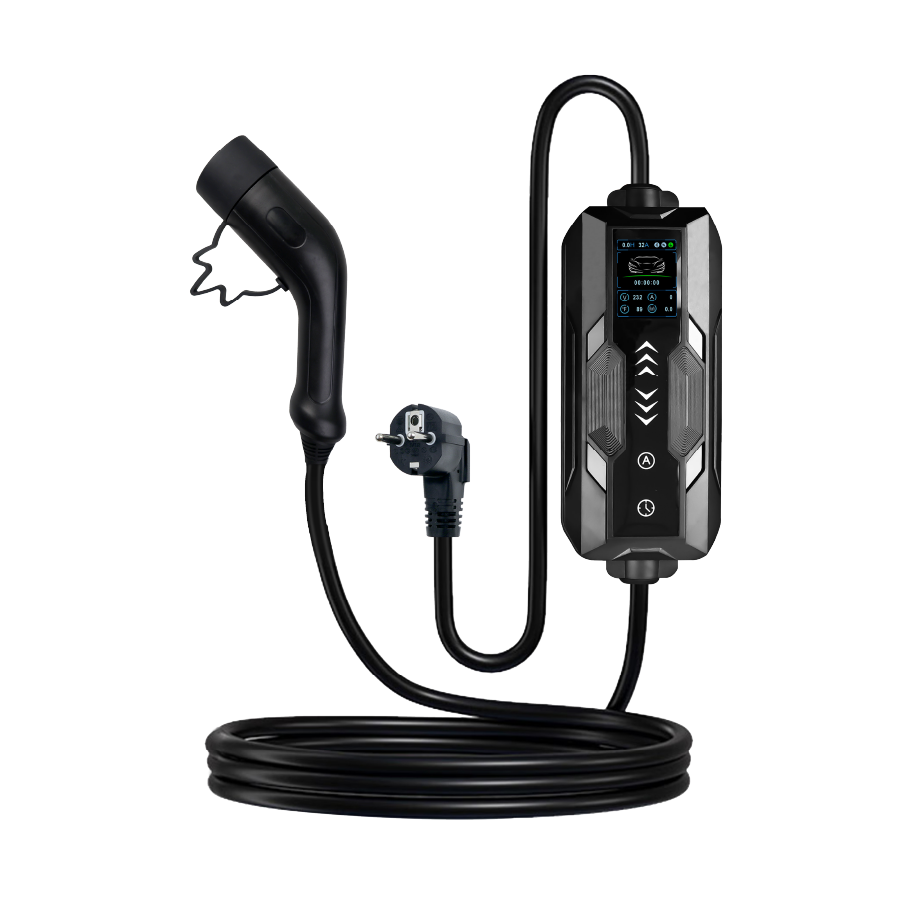

Up to 22KW EV Charging (default 16A or 32A).

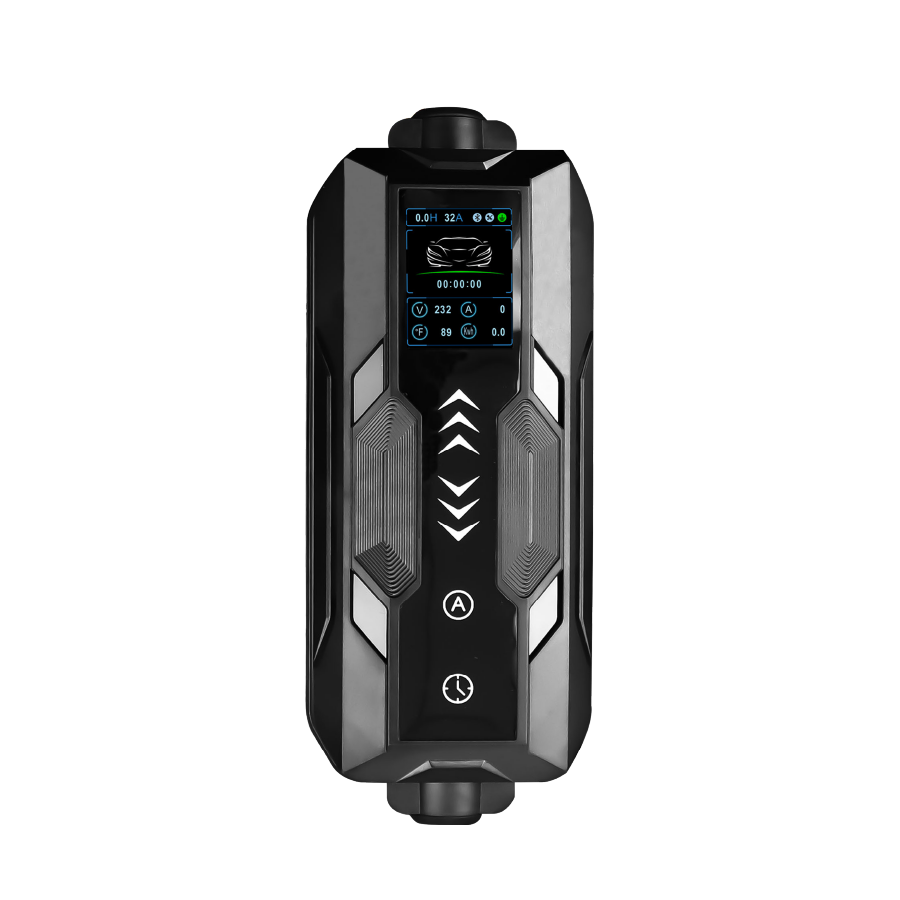

LED (display to show temperature, charging time,and real current).
| Product parameters | SK-EV32N |
| Charging Mode | Mode 2 IEC 62752 by TUV |
| Rated Current | Default 32A(Adjustable 13/16/20/32A) |
| Input | 85V-480V |
| Output | 85V-480V |
| Length of Cable | 5M or customized |
| Insulation Resistance (cable) | >1000MΩ (DC500V) |
| Contact Resistance | 0.5mΩ MAX |
| Working Temperature | -20℃-60℃ |
| Waterproof Grade | IP55(mating) |
| Plastic Shell | Thermoplastic Plastic |
